DuctBuilderHVAC duct-layout planning in Field to Fab

DuctBuilder, inside Field to Fab.

Plan duct layouts as part of the Field to Fab toolset.

Explore Field to Fab
DuctBuilderDemo screenshot

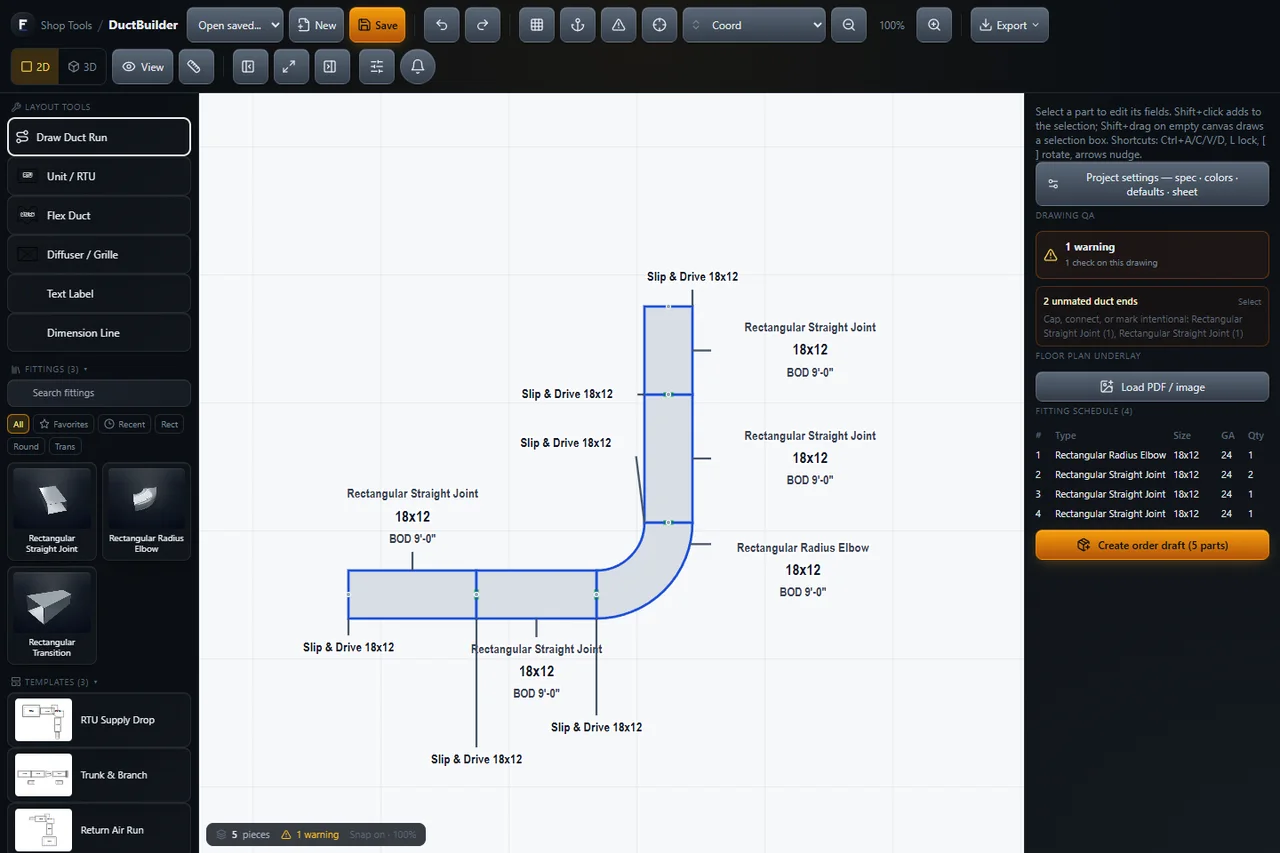

DuctBuilder 2D plan of a synthetic 18-by-12-inch duct run: four straight sections and a radius elbow, with joint labels and a fitting schedule.View larger
Actual interface · October 2026 local demo. Five connected pieces; two open ends remain flagged for review.

DuctBuilder screenshot 1

Demo screenshot

DuctBuilder 2D plan of a synthetic 18-by-12-inch duct run: four straight sections and a radius elbow, with joint labels and a fitting schedule.
Actual interface · October 2026 local demo. Five connected pieces; two open ends remain flagged for review.

Integrated into Field to Fab. DuctBuilder is part of the parent product and is not offered separately.

01 / Purpose

Duct planning, in context.

Plan connected duct runs with fittings, dimensions and layout views. DuctBuilder gives Field to Fab users a place to work through a layout before handing its context to the wider order workflow.

Who it’s for

For Field to Fab users planning duct layouts as part of their HVAC workflow.

Current status

Integrated into Field to Fab. DuctBuilder is part of the parent product and is not offered separately.

What you can work on

DuctBuilder

  1. Build a connected layout

    Place fittings and duct runs, adjust sizes and use snapping to work through connections. Templates support repeated arrangements.

  2. Inspect the drawing

    Switch between 2D and 3D views. Dimensions, airflow and centerline options help explain the layout.

  3. Keep the context

    Save and reopen layouts, prepare drawing views and use the order bridge within Field to Fab. Confirm the layout and output requirements for your own work.

A closer look

Another view of the layout.

The 3D view provides another way to inspect a connected run. Both captures show the same synthetic layout.

DuctBuilderDemo screenshot

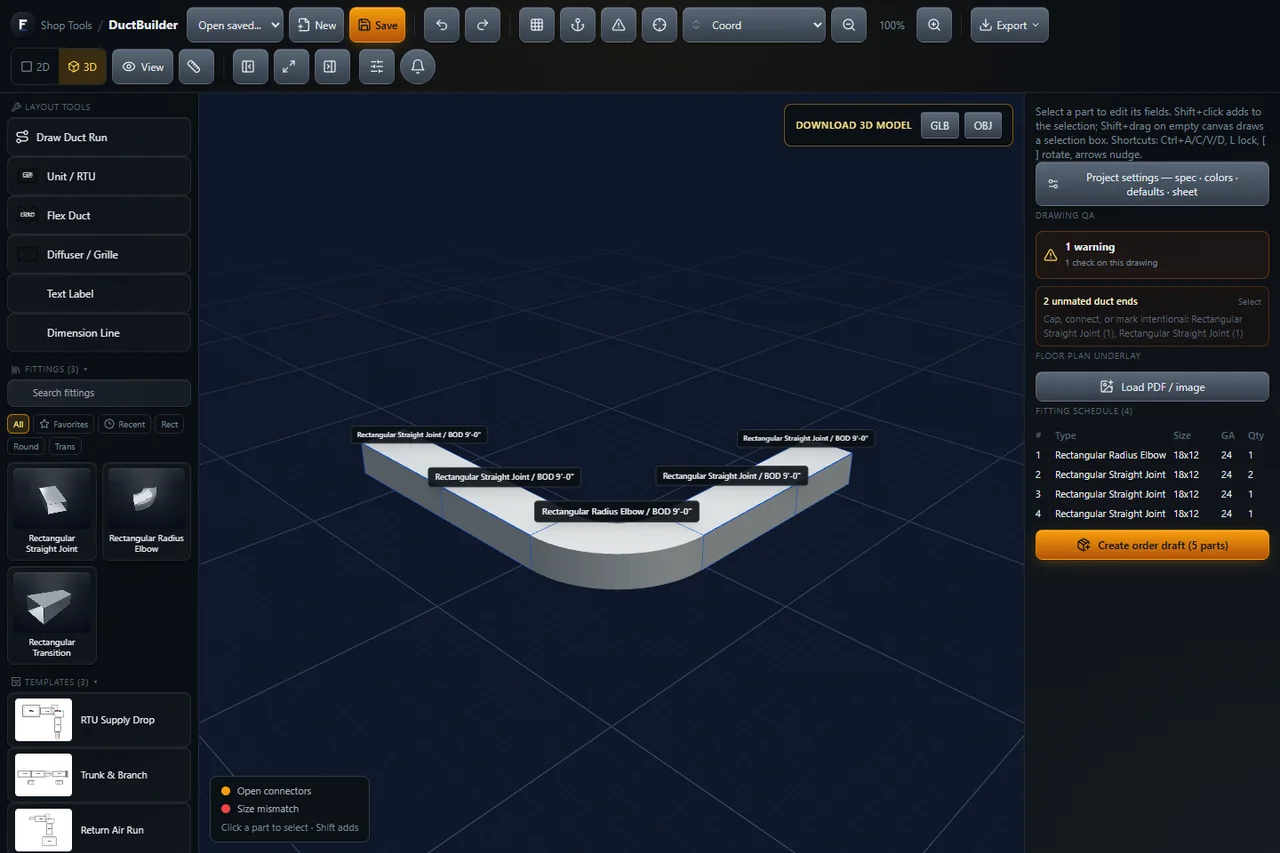

DuctBuilder 3D view of the same synthetic five-piece duct run, showing four straight sections connected by a radius elbow.View larger
Actual interface · matching 3D view of the same unsaved demo layout. Export and order controls were not used.

DuctBuilder screenshot 2

Demo screenshot

DuctBuilder 3D view of the same synthetic five-piece duct run, showing four straight sections connected by a radius elbow.
Actual interface · matching 3D view of the same unsaved demo layout. Export and order controls were not used.

Integrated into Field to Fab. DuctBuilder is part of the parent product and is not offered separately.

Next step

Start with Field to Fab.

See the wider product overview and how DuctBuilder fits within it.
